ESD Medium Bin 3.5″ Tall

Bin ID 14.7″ X 9.1″ X 3.4″ height

Case Quantity is 8 ESD Small Bins.  Minimum buy is 1 case.

SKU: DCE2035XL Category:

Description

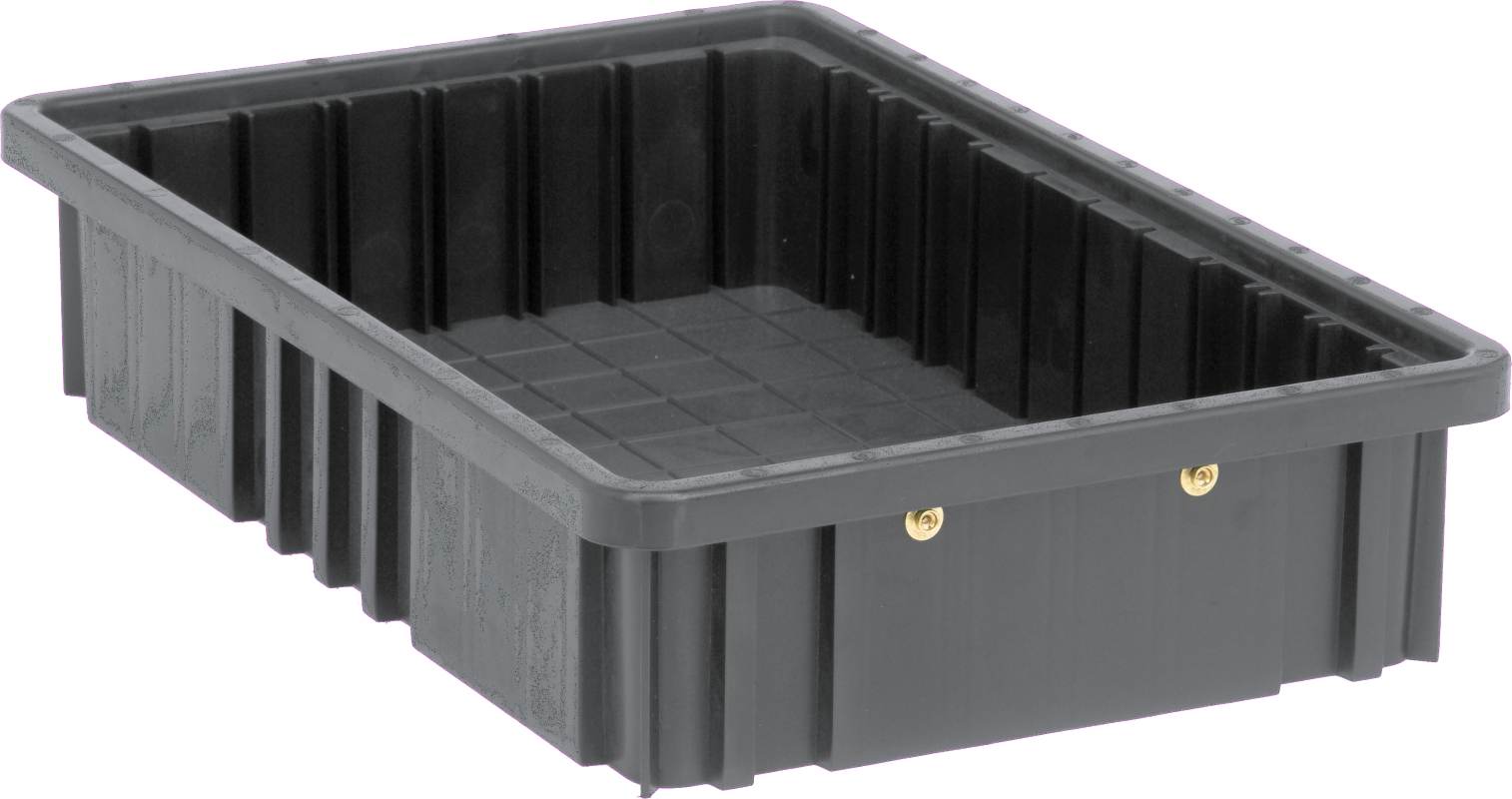

ESD Medium Bin 3.5 is 16.5″ X 10.9″ X 3.5″ on the outside at top of bin(largest spot with draft).  The inside dimension at bottom of bin is 14.7″ X 9.1″ X 3.4″(product clearance height). This bin stacks with or without lid. Plastic bin does not nest.

ESD Bin is made from ESD Safe Black Conductive Material. Material is heavy duty, reusable with bin rated for 40 Lbs. Bin weight is 1.1 Lb.


ESD Medium Bin – Divider Insert Options

  1. Leave area open.  Bottom of bin will be 14.7″ X 9.1″ X 3.4″ tall.
  2. Add ESD dividers on 1.25″ centers.  Bin has 11 slots on long side for short dividers and 7 slots on short side for long dividers.
  3. Add a foam insert tray which can be made from several materials including 2# pink polyethylene foam, polyurethane foam, and conductive black foam. $95 NRE for custom cavity sizes.
  4. Add a custom plastic ESD tray.  Materials stocked include conductive styrene, anti-static PVC, anti-static PETG, and inherently dissipative PETG.
  5. Add a stock plastic ESD insert tray.  See LINK for details.

Specifications

Tray Outer Dimensions

16.5 X 10.9 X 3.5

Tray Inner Dimensions

14.8 X 9.2 X 3.4

Divider Height

3.4

Lid

,

Long Divider Max #

Long Divider Max # 7(DVE1635)

Short Divider Max #

Short Divider Max # 11(DVE1035)
